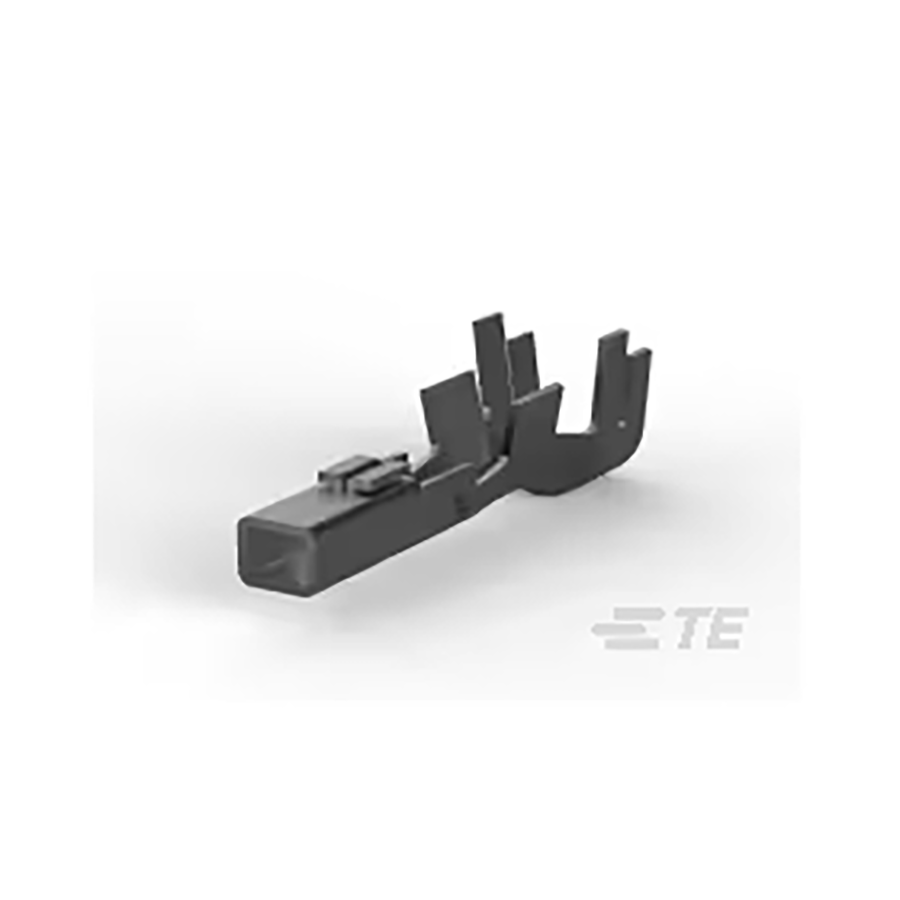

177915-1
Manufacturer:
TE Connectivity
Mfr.Part #:
177915-1
Datasheet:
Description:
Headers and Wire Housings Through Hole
| Parameter | Value |
|---|---|
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -30 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | |
| Flammability Rating | UL94V-0 |
| Lifecycle Status | Active |
| Gender | Receptacle (Female) |
| lead free status | Contains Lead |
| operating temperature | -30.0 °C to 105 °C |
| rohs status | Compliant |
| Connector Type | |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Housing Material | |
| elv compliant | Compliant |
| Mating Post Length | |
| Termination Post Length | |
| Termination Style | Crimp |
| Wire/Cable Gauge | 20 AWG to 16 AWG |
| Length | 14.2 mm |
Stock: 49440
Distributors
pcbx
pcbxUnit Price$0.31554
Ext.Price$0.31554
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.31554 | $0.31554 |
| 10 | $0.15777 | $1.57770 |
| 50 | $0.12136 | $6.06800 |
| 100 | $0.09335 | $9.33500 |
| 500 | $0.07181 | $35.90500 |
| 1000 | $0.05524 | $55.24000 |
| 3000 | $0.04249 | $127.47000 |
| 5000 | $0.04046 | $202.30000 |
| 10000 | $0.03853 | $385.30000 |
| 30000 | $0.03669 | $1100.70000 |
| 50000 | $0.03494 | $1747.00000 |
| 100000 | $0.03326 | $3326.00000 |
